Cable


  Photo Description Color Length Datasheet

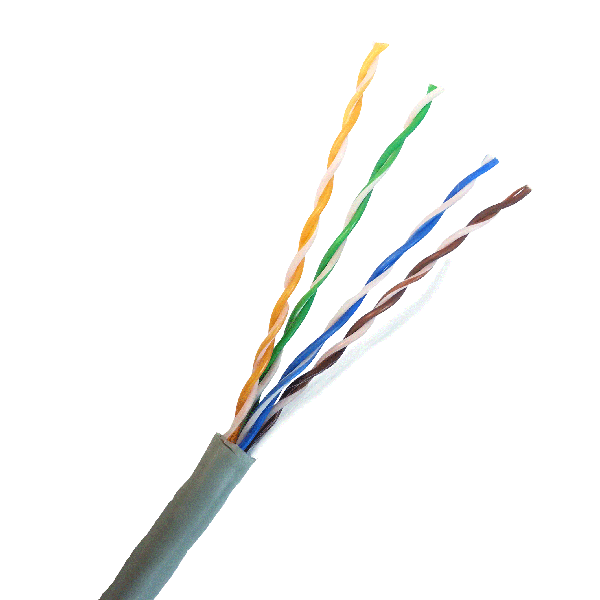

4 Pairs UTP Cat.5E Cable

305M

(53-39-2005)

Key Features :
-25AWG(0.49mm) Bare copper wire
-Attenuation: 22dB @ 100MHz
-Return Loss: 20.1 dB @ 100MHz
-Outer Diameter: 4.8mm

Standards :
ISO/ IEC 11801 ; IEC 61156-5 ; EN50173 ; EN50288-3-1 ; TIA/EIA-568B.2

MADE IN TAIWAN


Cat.5E LSOH Cable
4 Pairs UTP Cat.5E LSOH Cable

305M

(53-39-6005)

Key Features :
-25AWG(0.49mm) Bare copper wire
-Attenuation: 22dB @ 100MHz
-Return Loss: 20.1 dB @ 100MHz
-Outer Diameter: 5.1mm

Standards :
IEC 61156-5 ; ANSI/TIA-568-C.2

MADE IN TAIWAN



4 Pairs UTP Cat.5E Cable w/ SWA


150M





305M



(53-25-2103)



(53-25-2105)


Key Features:
-24AWG (0.495mm) Solid bare copper wire
-HDPE insulation and LDPE jacket
-Steel Wire Armour

Standards:
-ISO/IEC 11801; TIA/EIA-568-B.2; RoHS Complies




4 Pairs UTP Cat.6 Cable

305M

(53-39-6305)

Key Features:
-24AWG (1.00±0.05mm) Solid Anneal copper wire
-Attenuation: 19.8dB @ 100MHz
-Return Loss: 20.1 dB @ 100MHz
-Outer Diameter: 5.7mm

Standards:
-ISO/IEC 11801; TIA/EIA-568-B.2-1 ; IEC 61156-5 ; EN50173

MADE IN TAIWAN



4 Pairs UTP Cat.6 LSOH Cable

305M

(53-39-7305)

Key Features:
-24AWG (1.00±0.05mm) Solid Anneal copper wire
-Attenuation: 19.8dB @ 100MHz
-Return Loss: 20.1 dB @ 100MHz
-Outer Diameter: 5.7mm

Standards:

-ISO/IEC 11801; IEC 61156-5 ; EN50173 ; EN50288-6-1; TIA/EIA-568-B.2-1


MADE IN TAIWAN



* All photos and specifications are subject to change without notice.
